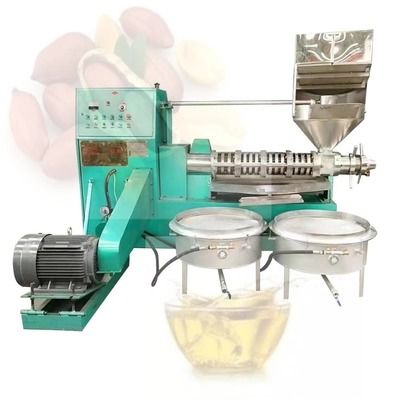

Coconut Oil Press Machine

Coconut Oil Press Machine
Coconut Oil Press Machine

Image Grand :  Coconut Oil Press Machine

Détails sur le produit:
Lieu d'origine: La Chine
Nom de marque: MIKIM
Certification: CE,IOS
Numéro de modèle: 6YL-60,6YL-70,6YL-80,6YL-100,6YL-125,6YL-150
Conditions de paiement et expédition:
Quantité de commande min: 1 ensemble
Prix: $1600.00 - 5000.00/ Set
Détails d'emballage: emballé par le paquet ou le chargement en bois d'exportation par le conteneur
Délai de livraison: 7-10 jours de travail
Conditions de paiement: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement: 300 ensembles par mois

Coconut Oil Press Machine

description de
Tension: 220/380v Condition: Nouveau
Garantie: 12 mois Type: machine de presse
Utilisation: Presse d'huile Catégorie automatique: Automatique
Certification: CE,SGS,CE SGS ISO,EMC,CE/SGS Caractéristique: Opération facile, coutume de type automatique, de haute qualité, personnalisée, haut rentable

Coconut Oil Press Machine

Technical Parameter :

1. Easy operating and small size, saving land, labor and energy consumption

2. Big pressing force in the chamber, making high oil output

3. Long-term continuous work, bring better economic benefit to user

4. Good quality and long durability, made of the most suitable material with refined treatments to ensure more than 10 years using

5. Wearing parts can be dismountable

6. Different design in squeeze chamber for both cold and hot pressing

7. Multi-function combined auto-temperature control and oil vacuum filter

8. Bevel gear technology make good performance when operating






Coconut Oil Press Machine 0

Model 6YL-60 6YL-70 6YL-80 6YL-100 6YL-125
Power 2.2 kw 3 kw 5.5 kw 7.5 kw 15 kw
Capacity 50-60kg/h 70-80kg/h 80-130kg/h 140-280kg/h 300-400 kg/h
Weight 220kg 380kg 780kg 1100kg 1280kg
Dimension(mm) 1200*780*1100 1400*860*1260 1700*1200*1500 1800*1300*1680 2100*1430*1700

Working Principle :



1. Transferred by the triangle belt, the electromotor drives the spiral shaft.



2. The oil plants falls into the first section of the spirals through the feeding part and being carried toward the end of the machine along with the rotating squeeze spirals.



3. As the space between the squeeze spirals are getting smaller, the oil plants frictions with each other as well as the squeeze spirals and the squeeze loops. The pressure in the chest is becoming bigger.



4. During this process, the oil plants are smashed and big amount of heat is generated, the tissue cells are destroyed and the oil is separated from the oil plants and flow out from several outlets.



5. After extracted, the oil plants turns to be cake containing low oil and discharged in thin slices from the end of the machine. The whole oil and residue separation process is completed.



Coconut Oil Press Machine 1

Coconut Oil Press Machine 2

Coconut Oil Press Machine 3



Packaging & Shipping

1.We always use standard export wooden packing,carton box.
2.You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.
3.We cooperate with China best shipping company to get best price and fast delivery.
4.You will get full feedback when your machine is on the way.
